Tuning Concept - Express emotions in different ways

Venus is the brightest planet that can be observed on Earth except the moon. It has a surface temperature of up to 462°C, so the tuning of the sound needs to have the "hot" emotion.

The engineer believes that sound is the main way to convey emotions, but it doesn’t necessarily have to be warm, it can also be free and indulgent. Venus no longer expresses emotions through the coldness and warmth of the timbre, but realizes this idea through the expressiveness of the sound.

Unit Configuration

Venus is equipped with 3 balanced armature and 1 dynamic drivers with 3-way crossover, which has a unique performance different from other IEMs in the integration of high, medium and low frequencies. Under the precise tuning, the 4 units have achieved consistent timbre and smooth connection of the three frequencies, highlighting the expressiveness of the Venus mid-frequency.

The 10mm beryllium-plated diaphragm dynamic unit is mainly responsible for the bass. Due to the strong rigidity of the diaphragm, the sound details are fully restored, giving full play to the dynamic advantages of the dynamic unit itself.

The customized mid-frequency balanced armature driver has a strong sound density.It is connected with the high and low frequency units to retain and restore more sound elements;

In addition, the dual custom high-frequency drivers are connected with the mid-range and low-frequency units, which enhances the energy and extension of the high frequencies and keeps the vertical sound stage balanced.

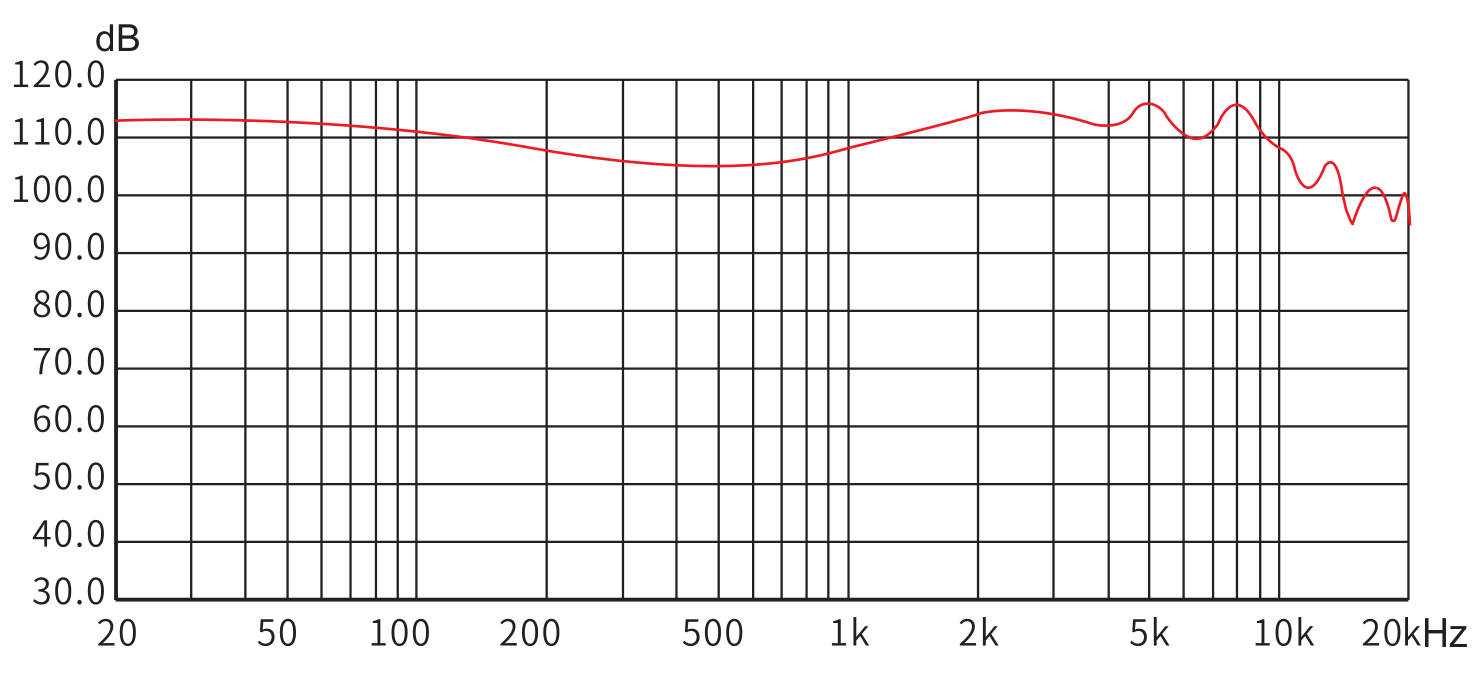

Frequency Response Curve

IEM Cable

Venus comes standard with 4-core high-purity silver-plated OCC wire, which combines the advantages of OCC full low frequency and silver-plated transparency to achieve balanced output of three frequencies.

Each core consists of 49 strands of 0.06mm, twisted in a Litz Type 1 structure, which effectively avoids skin effect and proximity effect, making high-frequency signal transmission more stable. The multi-strand layered shielding structure effectively suppresses electromagnetic interference, ensuring a pure background, making Venus more in line with the tuner's expression of sound.

Material: Silver-plated OCC

IEM connector: 0.78mm 2pin

Outer jacket: PVC

Core wire diameter: 1.2mm

Conductor strands: 7*7*4, total 196 strands

Cable length: 1.2m

Braiding method: 4-core cross braid

Front-end plug: Interchangeable 4.4mm balanced plug, 3.5mm single-ended plug, USB-C plug

Plug material: gold-plated copper

Plug conversion internal connection material: high-purity copper

Shell hardware kit: aluminum oxidation

Wire structure: Litz multi-twisted structure TYPE1
